Distribution Transformer

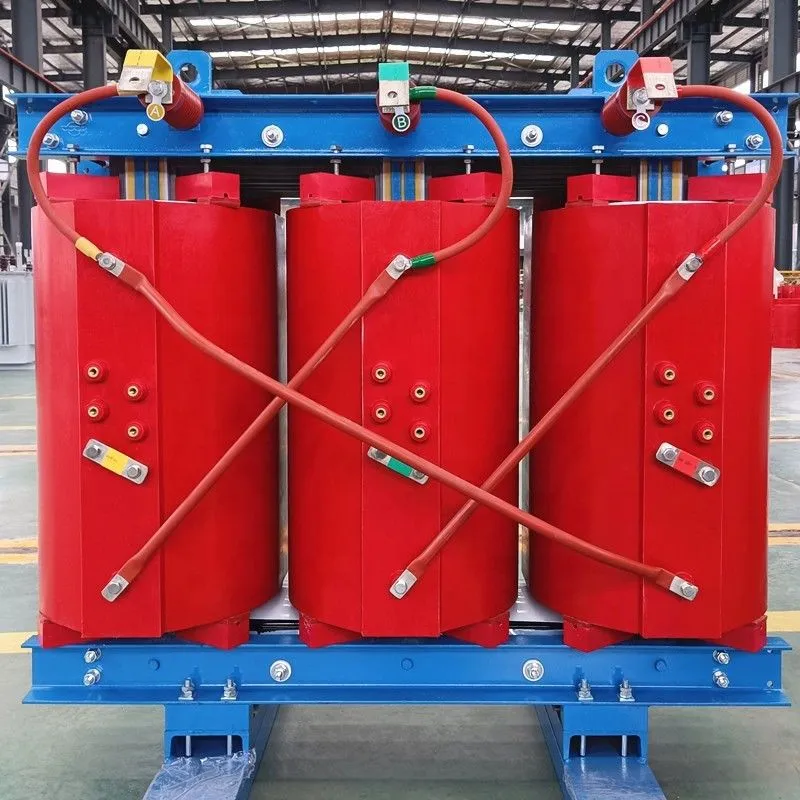

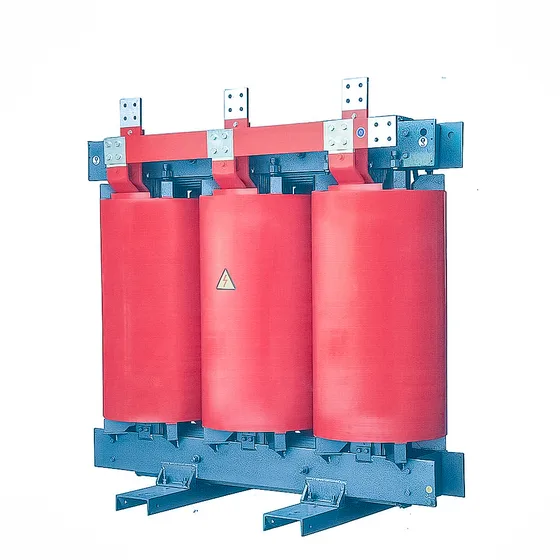

Dry-Type / Cast-Resin Transformer

For indoor substations, high-rise buildings and fire-sensitive sites, Silverstone cast-resin dry-type transformers eliminate oil entirely: epoxy-resin encapsulated windings, low partial discharge, and maintenance-free operation in harsh, humid or dusty environments.

Key Specifications

Product class	Dry-type, epoxy cast-resin
Primary voltage	Up to 36 kV class (11 / 22 / 33 kV typical)
Rated capacity	50 kVA – 5 MVA typical range
Insulation class	F / H typical
Insulation level	LI75 AC35/AC3 (10 kV) · LI125 AC55/AC3 (20 kV) · LI170 AC70/AC3 (35 kV)
Short-circuit impedance	4 – 8% (voltage class / rating dependent)
Vector group	Dyn11 / Yyn0
Type series	SC10 / SCB10 · SCZB10 on-load tap-changing · SC(H)11 low-loss
Cooling	AN / AF
Reference standard	IEC 60076-11
Additional standards	GB/T 10228 · GB 1094.11 · DIN 42523
Enclosure options	IP00 open · IP2X / IP3X indoor enclosures
Sourcing base	Suzhou Industrial Park, Jiangsu, China

Typical configurations shown. Final ratings, dimensions and test reports are confirmed per project datasheet — include your specification with the inquiry. Download brochure (PDF) →

Typical Applications

Indoor substationsHigh-rise buildingsHospitals & data centersMetro & tunnel systemsMarine & offshore auxiliaries

Frequently Asked Questions

When should I choose dry-type instead of oil-immersed?

Choose dry-type where fire safety codes restrict oil-filled equipment: indoor rooms, basements, tunnels, hospitals and high-rise buildings. Oil-immersed remains more economical for outdoor, ground-level installations.

Can dry-type transformers be used outdoors?

Yes, with a weather-protected enclosure. Share your site conditions and we will configure the enclosure rating and cooling accordingly.

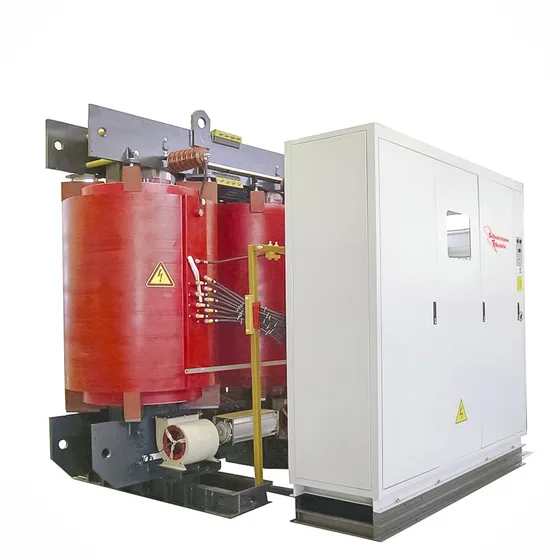

Do you provide the enclosure and accessories?

Yes — enclosures, temperature controllers, forced-air cooling fans and PT100 sensors can be supplied as a complete package.
